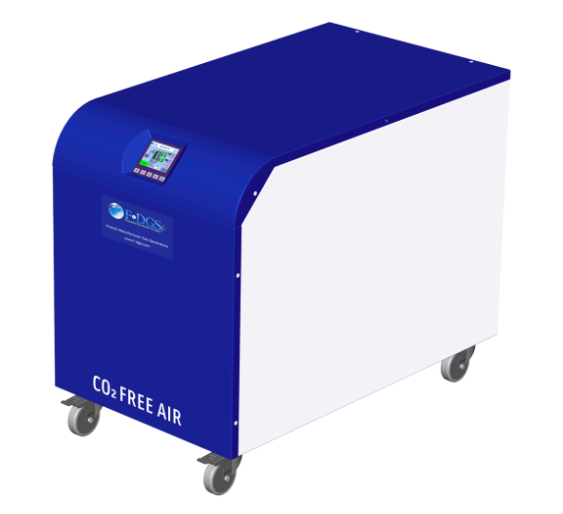

DEIMOS CO2.FREE Air Gas Generator
H2O, CO2 Free
F-DGS’s DEIMOS CO2.FREE Air Gas generators is specifically designed for use with FT-IR spectrometers to provide a purified purge and air bearing gas supply from compressed air.
The unit provides instruments with CO2 free compressed air at less than -70°C (-94°F) dewpoint with no suspended impurities larger than 0.01 micron 24 hours/day, 7days/week.
The DEIMOS CO2.FREE is available with integrated oil free air compressor using the Energy Saving Technology mode (EST). It is extremely compact and quiet in operation.
The generator is controlled using the latest color touch screen technology to display the process in real time, inlet / outlet pressure, Air Flow and status of the system with remote access for diagnostic control.
Product benefits
BETTER DETECTOR PERFORMANCE
The CO2 FREE Air gas generator generates cleaner background spectra in a shorter period of time and more accurate analysis by improving the signal-to-noise ratio.
INCREASED LABORATORY EFFICIENCY
A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.
IMPROVED SAFETY
CO2 FREE Air gas produced at low pressure and ambient temperature removes the need for high pressure cylinders.
SIMPLE INSTALLATION
Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.
Characteristics
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor
Specifications
|
Models
|
DEIMOS.CO2.FREE.1/1
|
DEIMOS.CO2.FREE.10/1
|
DEIMOS.CO2.FREE.30/1
|
|||||
|---|---|---|---|---|---|---|---|---|
|
GENERAL INFORMATION
|
||||||||
|
Max Purge Air Flow rate
|
1 L/min
|
10 L/min
|
30 L/min
|
|||||
|
Max Purge Air pressure
|
6 bar (87 psi)
|
|||||||
|
CO2 level
|
< 1 ppm
|
|||||||
|
H2O Dew Point
|
-70°C (-94°F)
|
|||||||
|
Particles
|
0.1 μ
|
|||||||
|
Touch screen
|
Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors)
|
|||||||
|
Max Relative Humidity
|
80% RH @ 25°C (77°F)
|
|||||||
|
Temperature range
|
From 5 – 25°C (41 – 77°F))
|
|||||||
|
Max Altitude
|
3000 Meters
|
|||||||
|
Noise level @ 1M
|
50 dB (A)
|
52 dB (A)
|
||||||
|
Dimensions
(W x H x D) |
47.5 x 66.2 x 65 cm
(18.7″ x 26″ x 25.6″) |
47.5 x 66.2 x 79 cm
(18.7″ x 26″ x 31″) |
||||||
|
Weight (kg/lbs)
|
58 / 127
|
108 / 238
|
115 / 253.5
|
|||||
|
Power consumption
|
350 VA
|
850 VA
|
1700 VA
|
|||||
|
Electrical supply
|
220 – 240 V ac / 1 ph / 50 – 60 Hz
|
|||||||
|
110 – 120 V ac / 1 ph / 50 – 60 Hz
|
||||||||
|
Fuse
|
10A
|
|||||||
|
CONNECTIONS
|
||||||||
|
Purge Air outlet
|
G 1/4” (BSP) Female
|
|||||||
|
COMMUNICATION
|
||||||||
|
USB/PC Control
|
Standard
|
|||||||
