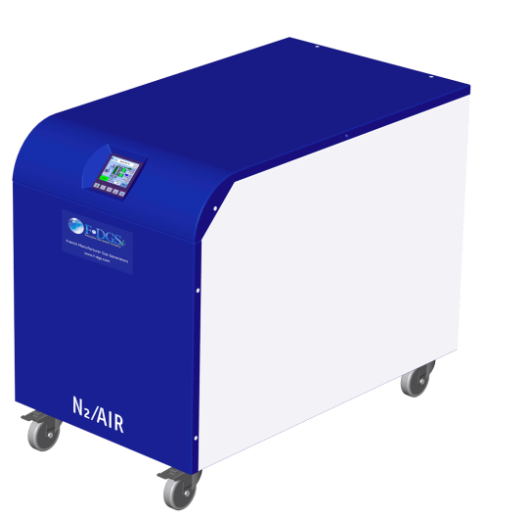

THEMISTO MP Combined Nitrogen Air Generator
PSA Technology
The THEMISTO MP dual flow generator has been specifically designed to meet the Nitrogen for plasma support gas monochromator purge and air supply for POP gas or monochromator air purge for MP-AES instrument.
The THEMISTO MP has two operation modes :
Either 25 L/min N2 at 99.5% for organic analysis or 10 L/min N2 at 99.95% for Sulfur analysis with a supporting air supply of up to 36.5 L/min.
The THEMISTO MP is available with integrated oil free air compressor using the Energy Saving Technology mode (EST). Fitted with an oxygen sensor, THEMISTO MP will alert you when N2 purity has been reched.
The Generator is controlled using the latest color touch screen technology to display the process in real time, inlet/ outlet pressures and status of the system with remote access for diagnostic control.
Product Benefits
IMPROVE ANALYTICAL INSTRUMENTS PERFORMANCE
The production of a constant flow of gas improves the consistency of the analysis results and hence reproducibility.
IMPROVE LABORATORY EFFICIENCY
The relatively high gas volumes required by MP-AES instruments make cylinder supply inappropriate for such applications. A constant, uninterrupted gas supply eliminates interruptions of analyses to change cylinders.
IMPROVE ECONOMY
- Quick return on investment < 1 years
- No gas cylinder rental bottles, no price inflation
IMPROVE SAFETY
Nitrogen and Air produced at low pressure and ambient temperature removes the hazards associated with high pressure cylinders and liquid Dewar’s.
Characteristics
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor
Specifications
|
Models
|
THEMISTO.MP
|
|||
|---|---|---|---|---|
|
GENERAL INFORMATION
|
||||
|
Gas
|
Nitrogen
|
Air
|
||
|
Max Flow rate
|
25 L/min
|
10 L/min
|
36.5 L/min
|
|
|
Max pressure
|
6 bar (87 psi)
|
6 bar (87 psi)
|
||
|
Nitrogen purity
|
> 99.5%
|
99.95%
|
–
|
|
|
Dew Point
|
–
|
-20°C (-4°F)
|
||
|
Particles
|
0.01 μ
|
|||
|
Touch screen
|
Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors)
|
|||
|
Built with O2 sensor
|
Yes (to control N2 purity)
|
|||
|
Max Relative Humidity
|
80% RH @ 30°C
|
|||
|
Temperature range
|
From 5 – 25°C (41 – 77°F))
|
|||
|
Max Altitude
|
4000 Meters
|
|||
|
Noise level @ 1M
|
60 dB (A)
|
|||
|
Dimensions
(W x H x D) |
47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″)
|
|||
|
Weight (kg/lbs)
|
155 / 202
|
|||
|
Power comsuption
|
2200 VA
|
|||
|
Electrical supply
|
220 – 240 V ac / 1 ph / 50 – 60 Hz
|
|||
|
110 – 120 V ac / 1 ph / 50 – 60 Hz
|
||||
|
Fuse
|
10A
|
|||
|
CONNECTIONS
|
||||
|
Nitrogen/Air outlet
|
2x 1/4″ GF
|
|||
|
COMMUNICATION
|
||||
|
USB/PC Control
|
Standard
|
|||
