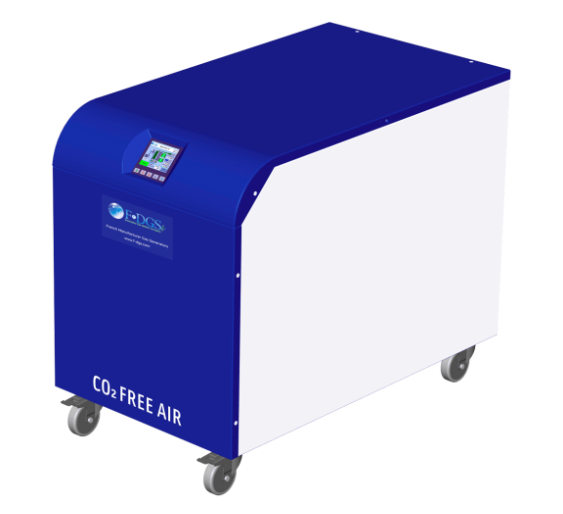

DEIMOS CO2.FREE Air Gas Generator

H2O, CO2 Free

CO2 Free Air for FT-IR

F-DGS’s DEIMOS CO2.FREE Air Gas generators is specifically designed for use with FT-IR spectrometers to provide a purified purge and air bearing gas supply from compressed air.

The unit provides instruments with CO2 free compressed air at less than -70°C (-94°F) dewpoint with no suspended impurities larger than 0.01 micron 24 hours/day, 7days/week.

The DEIMOS CO2.FREE is available with integrated oil free air compressor using the Energy Saving Technology mode (EST). It is extremely compact and quiet in operation.

The generator is controlled using the latest color touch screen technology to display the process in real time, inlet / outlet pressure, Air Flow and status of the system with remote access for diagnostic control.

Product benefits

BETTER DETECTOR PERFORMANCE

The CO2 FREE Air gas generator generates cleaner background spectra in a shorter period of time and more accurate analysis by improving the signal-to-noise ratio.

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

IMPROVED SAFETY

CO2 FREE Air gas produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

Intelligent color touch screen to provide simple and user friendly management of all functions of the unit

With integral oil free air compressor

Quiet thanks to the Soundproofed compressor box and anti-vibration features

Auto start

Audible alarm display and Visual maintenance indication with history log

Outlet flow indicator

Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor

Remote PC monitoring and diagnostic analysis via USB interfacing the unit with customer’s PC. Software allows carrying out checks and maintenance effectively, via a remote connection

Compact design

Fitted with wheels

Specifications

Models	DEIMOS.CO2.FREE.1/1	DEIMOS.CO2.FREE.10/1	DEIMOS.CO2.FREE.30/1
GENERAL INFORMATION
Max Purge Air Flow rate	1 L/min	10 L/min	30 L/min
Max Purge Air pressure	6 bar (87 psi)
CO2 level	< 1 ppm
H2O Dew Point	-70°C (-94°F)
Particles	0.1 μ
Touch screen	Touch screen (operating parameters, system status, alarms) with LED indicators(Power on/off; ready or errors)
Max Relative Humidity	80% RH @ 25°C (77°F)
Temperature range	From 5 – 25°C (41 – 77°F))
Max Altitude	3000 Meters
Noise level @ 1M	50 dB (A)	52 dB (A)
Dimensions (W x H x D)	47.5 x 66.2 x 65 cm (18.7″ x 26″ x 25.6″)	47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″)
Weight (kg/lbs)	58 / 127	108 / 238	115 / 253.5
Power consumption	350 VA	850 VA	1700 VA
Electrical supply	220 – 240 V ac / 1 ph / 50 – 60 Hz
Electrical supply	110 – 120 V ac / 1 ph / 50 – 60 Hz
Fuse	10A
CONNECTIONS
Purge Air outlet	G 1/4” (BSP) Female
COMMUNICATION
USB/PC Control	Standard

Details: Category: Zero Air Generators

DEIMOS UZA.TOTAL Ultra Zero Air Generator

H2O, CO2, NO, HCS free

Ultra Zero Air Total for Gas sensing, GC-FID, GC-FPD, GC-NPD

F-DGS’s DEIMOS UZA.TOTAL Ultra Zero Air generators is able to remove Total hydrocarbons to less than 0.05 ppm and others polluant like H2O, CO2, CO, NOx, SO2.

CO and THCs are removed using heated catalyst.

H2O andCO2 are removed with dual molecular sieve PSA system.

NOx is removed with Purafil and SO2 is removed with and activated charcoal filter.

The DEIMOS UZA.TOTAL is available with integrated oil free air compressor using the Energy Saving Technology mode (EST). It is extremely compact and quiet in operation.

The generator is controlled using the latest color in touch screen technology to display the process in real time, inlet / outlet pressure, Air Flow and status of the system with remote access for diagnostic control.

Product Benefits

BETTER DETECTOR PERFORMANCE

The reduction of H2O, CO2, CO, NOx, SO2 decreases the background noise level and gives the baseline much better stability, considerably increasing detector sensitivity and ensuring precise analytical results.

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

SAVE MONEY

The unit only requires connection to a suitable socket for model with integrated compressor. The investment can be paid back in less than one year.

IMPROVED SAFETY

Ultra Zero Air Total produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SECURITY OF SUPPLY

Do not requires external compressed air supply.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

Intelligent color touch screen to provide simple and user friendly management of all functions of the unit

With integral oil free air compressor

Quiet thanks to the Soundproofed compressor box and anti-vibration features

Auto start

Audible alarm display and Visual maintenance indication with history log

Outlet flow indicator

Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor

Remote PC monitoring and diagnostic analysis via USB interface to the unit with customer’s PC. Software allows carrying out checks and maintenance effectively, via a remote connection

Compact design

Fitted with wheels

Specifications

Models	DEIMOS. UZA.TOTAL.1	DEIMOS. UZA.TOTAL.3	DEIMOS. UZA.TOTAL.6	DEIMOS. UZA.TOTAL.10	DEIMOS. UZA.TOTAL.20	DEIMOS. UZA.TOTAL.35	DEIMOS. UZA.TOTAL.50
GENERAL INFORMATION
Max TOC Air Flow rate	1 L/min	3 L/m3	6 L/min	10 L/min	20 L/min	35 L/min	50 L/min
Max TOC Air pressure	6 bar (87 psi)
Total HCs outlet	< 0.05 ppm
Total CO, NOx, SO2 outlet	< 0.05 ppm
Total CO2 outlet	< 5 ppm
H2O Dew Point	-75°C (-103°F)			-70°C (-94°F)
Particles	0.01 μ
Touch screen	Touch screen (operating parameters, system status, alarms) with LED indicators (Power on/off; ready or errors)
Max Relative Humidity	80% RH @ 25°C (77°F)
Temperature range	From 5 – 25°C (41 – 77°F))
Noise level @ 1M	< 50 dB (A)			< 52 dB (A)
Dimensions (W x H x D)	47.5 x 66.2 x 65 cm (18.7″ x 26″ x 25.6″)			47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″)
Weight (kg/lbs)	58 / 128			75 / 165			121 / 267
Electrical supply	220 – 240 V ac / 1 ph / 50 – 60 Hz
Electrical supply	110 – 120 V ac / 1 ph / 50 – 60 Hz
Power consumption	655 VA			1130 VA		1980 VA
CONNECTIONS
UZA Air outlet	G 1/4” (BSP) Female
COMMUNICATION
USB/PC Control	Standard

Details: Category: Zero Air Generators

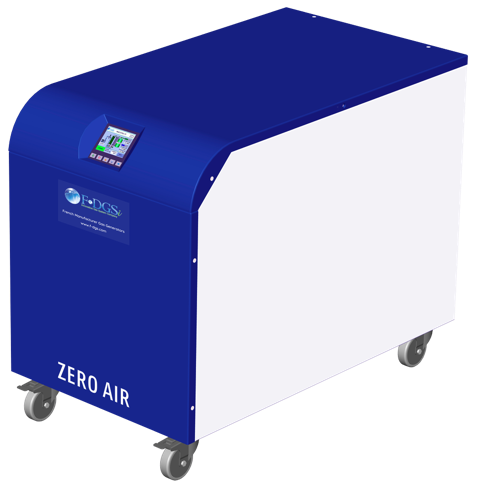

DEIMOS UZA Ultra Zero Air Generator

H2O, HCS free

Ultra Zero Air for CO2 analyzer, GC-FID, GC-FPD, GC-NPD

F-DGS’s DEIMOS UZA Ultra Zero Air generators are some of the smallest and most efficient Hydrocarbon-free air systems for laboratory use. Utilising the PSA technology to remove water vaper and the heated catalyst technology to remove Total Hydrocarbon less than 0.05 ppm.

The DEIMOS UZA is available with integrated oil free air compressor using the Energy Saving Technology mode (EST). It is extremely compact and quiet in operation.

Product Benefits

BETTER DETECTOR PERFORMANCE

The reduction of CO and hydrocarbons, including methane to < 0.05 ppm decreases the background noise level and gives the baseline much better stability, considerably increasing detector sensitivity and ensuring precise analytical results.

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

SAVE MONEY

The unit only requires connection to a suitable socket for model with integrated compressor. The investment can be paid back in less than one year.

IMPROVED SAFETY

Ultra Zero Air produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SECURITY OF SUPPLY

Do not requires external compressed air supply.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

Intelligent color touch screen to provide simple and user friendly management of all functions of the unit

With integral oil free air compressor

Quiet thanks to the Soundproofed compressor box and anti-vibration features

Auto start

Audible alarm display and Visual maintenance indication with history log

Outlet flow indicator

Energy Saving Technology (EST):
- Switch off the compressor when gas supply is not required
- Allowing low energy consumption and increasing durability of the compressor

Remote PC monitoring and diagnostic analysis via USB interfaces the unit with customer’s PC. Software allows carrying out checks and maintenance effectively, via a remote connection

Compact design

Fitted with wheels

Specifications

Models	DEIMOS.UZA.1	DEIMOS.UZA.3	DEIMOS.UZA.6	DEIMOS.UZA.10	DEIMOS.UZA.20	DEIMOS.UZA.35	DEIMOS.UZA.50
GENERAL INFORMATION
Max TOC Air Flow rate	1 L/min	3 L/m3	6 L/min	10 L/min	20 L/min	35 L/min	50 L/min
Max TOC Air pressure	6 bar (87 psi)
Total HCs out	< 0.05 ppm
Total CO out	< 0.05 ppm
H2O Dew Point	-50°C (-58°F)
Particles	0.01 μ
Touch screen	Touch screen (operating parameters, system status, alarms) with LED indicators (Power on/off; ready or errors)
Max Relative Humidity	80% RH @ 25°C (77°F)
Temperature range	From 5 – 25°C (41 – 77°F))
Noise level @ 1M	< 50 dB (A)			< 52 dB (A)
Dimensions (W x H x D)	47.5 x 66.2 x 65 cm (18.7″ x 26″ x 25.6″)			47.5 x 66.2 x 79 cm (18.7″ x 26″ x 31″)
Weight (kg/lbs)	58 / 128			75 / 165			121 / 267
Electrical supply	220 – 240 V ac / 1 ph / 50 – 60 Hz
Electrical supply	110 – 120 V ac / 1 ph / 50 – 60 Hz
Power consumption	655 VA			1130 VA		1980 VA
CONNECTIONS
UZA Air outlet	G 1/4” (BSP) Female
COMMUNICATION
USB/PC Control	Standard

Details: Category: Zero Air Generators

COSMOS RACK ZA Zero Air Generator

Zero Air Gas generator 19”

Zero Air for Gas sensing, GC-FID, GC-FPD, GC-NPD, Mud logging, THA

The COSMOS RACK Zero Air generator utilizes compressed air that is prefiltered to 0.1 microns and then purified using a heated catalyst module. The output zero air is free from hydrocarbons including methane and carbon monoxyde to < 0.05 ppm. A post filtration filter of 0.01 micron is used to prevent any kind of particles from entering the instrument. This purity level produces a low signal to noise ratio, ensuring a flat and stable analyser baseline.

Designed with safety and convenience in mind, this system will eliminating the need for inconvenient high pressure gas cylinders.

The ergonomic, compact and silent design makes the COSMOS RACK Zero Air series the ideal solution for the following analytical applications.

Product Benefits

BETTER DETECTOR PERFORMANCE

The reduction of hydrocarbons, including methane to < 0.05 ppm decreases the background noise level and gives the baseline much better stability, considerably increasing detector sensitivity and ensuring precise analytical results.

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

SAVE MONEY

The unit only requires connection to a suitable socket and to external source of compressed air. The investment can be paid back in less than one year.

IMPROVED SAFETY

Zero air produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

Various flow rate: 1.5, 3, 6, 15, 30 L/min

Purity : - HC < 0.05 ppm - CO < 0.05 ppm

Pressure : up to 6.5 bar (94 psi)

External clean and dry air compressor required (COSMOS Rack Compressor)

LED indicators status (Ready, Stand-by, Alarm, Off)

Pressure setting via a front regulator with gauge

Minimal maintenance with only annual filter change

Remote PC monitoring and diagnostic analysis via USB to interface the unit with customer’s PC software (allow to carry out checks and maintenance effectively, only via a remote connection)

Specifications

Models	RACK.ZA.1500	RACK.ZA.3000	RACK.ZA.6000	RACK.ZA.15000	RACK.ZA.30000
ZERO AIR OUTLET
Zero air flow rate(L/min)	1.5	3	6	15	30
HC/C0 outlet content	< 0.05 ppm
Zero air pressure outlet	Maximum 6.5 bar (94 psi)
Starting time	45 min
INLET AIR REQUIREMENT
Water Dew Point at the inlet	< -20°C (-4°F)
HCs concentration Max.at the inlet	100 ppm
Maximum inlet air temperature	40°C (104°F)
Inlet air pressure(min/max)	4,5 – 10 bar (65 – 145 psi)
GENERAL INFORMATION
Temperature range	From 5 – 35°C (4 – 95°F) and humidity 80% to 25°C (77°F)
LED indicators status	Power on/off; system ready or errors
Noise level @ 1M	< 25 dB (A)
IP rating	IP20
Dimensions	Standard 19” Rack 3U – depth 50 cm			Standard 19” Rack 4U – depth 50 cm
Weight (kg/lbs)	10 / 22			15 / 33
Power consumption max.	240 W (280 V ac)
Fuse rating (5x20mm)	4 A
Electrical supply	220 – 240 V 50 Hz
Electrical supply	110 – 120 V 60 Hz
CONNECTIONS
Inlet / Outlet connection	1/4 NPT / 1/8 NPT
COMMUNICATION
USB port	Standard
Remote control softwarevia ethernet	Option
OPTIONS
Available with integrated compressor	Yes

COSMOS AIR COMPRESSOR	110V
Part Number	COSMOS AIR.COMP-USA

Details: Category: Zero Air Generators

Zero Air Total

COSMOS ZA.TOTAL Zero Air Total Generator

HCS, CO2 and NO free Air

Zero Air Total for Gas sensing, GC-FID, GC-FPD, GC-NPD, THA

The COSMOS Zero Air Total generators produce dry and hydrocarbon-free air, using air from oil-free compressors, to be used as detector gas for GC. The hydrocarbons and CO are removed with a catalytic oven filled with palladium, the Humidity and CO2 is removed with a dual molecular sieve PSA system, NO is removed with Purafil and other components are removed with with an active charcoal filter. The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results.

Designed with safety and convenience in mind, this system will eliminating the need for inconvenient high pressure gas cylinders. This complete turnkey system is engineered with the highest quality components, is easy to install and requires only minimal annual maintenance. The ergonomic, compact and stackable design makes the Zero Air Total series the ideal solution for the your GC gas supply.

Product Benefits

BETTER DETECTOR PERFORMANCE

INCREASED LABORATORY EFFICIENCY

A constant, uninterrupted gas supply of guaranteed purity eliminates interruptions of analyses to change cylinders and reduces the amount of instrument re-calibrations required.

SAVE MONEY

The unit only requires connection to a suitable socket and to external source of compressed air. The investment can be paid back in less than one year.

IMPROVED SAFETY

Zero air produced at low pressure and ambient temperature removes the need for high pressure cylinders.

SIMPLE INSTALLATION

Gas generators can be installed in the laboratory, on or under a bench, eliminating the need for long gas lines from cylinders secured elsewhere.

Characteristics

Various flow rate : 1.0, 1.5, 3, 6, 15, 30 L/min

Purity : - HC, CO < 0.05 ppm - NOx, SO2 < 0.05 ppm - CO2 < 5 ppm

Pressure : up to 6.5 bar (94 psi)

External clean and dry air compressor required

Compact, space-saving modular stackable design

Compatible with COSMOS Air Compressor

LED indicators status (Ready, Warm up, Stand-by, Alarm, Off)

Remote PC monitoring and diagnostic analysis via USB/ RS232 interfaces the unit with customer’s PC. Software allows carrying out checks and maintenance effectively, via a remote connection.

Specifications

Models	ZA.T.1000	ZA.T.1500	ZA.T.3000	ZA.T.6000	ZA.T.15000	ZA.T.30000
GENERAL INFORMATION
Zero air flow rate(L/min)	1.0	1.5	3	6	15	30
HC/C0 outlet content	< 0.05 ppm
CO2, NOx, SO2	< 0.05 ppm
Dewpoint	< -75°C (-103°F)
Zero air pressure outlet	Maximum 6.5 bar (94 psi)
Starting time	40 min		45 min		50 min
Temperature range	From 5 – 35°C (4 – 95°F) and humidity 80% to 25°C (77°F)
LED indicators status	Ready, Warm up, Stand-by, Alarm, Off
Dimensions (W x H x D)	30 x 15 x 54 cm (12″ x 6″ x 21″)
Weight (kg/lbs)	14 / 30.8		15 / 33		20 / 44	22 / 48.5
Fuse	2 A (5 x 20 mm)
Power consumption	240 W (280 V ac)
Electrical supply	220 – 240 V 50 Hz
Electrical supply	110 – 120 V 60 Hz
GENERAL INFORMATION FOR INLET AIR
Water Dew Point at the inlet	< -20°C (-4°F)
HCs concentration Max.at the inlet	100 ppm
Maximum inlet air temperature	40°C (104°F)
Inlet air pressure(min/max)	4,5 – 10 bar (65 – 145 psi)
CONNECTIONS
Inlet/outlet connection	1/8″ G F
COMMUNICATION
USB/RS232/PC Control	Standard

COSMOS AIR COMPRESSOR	110V
Part Number	COSMOS AIR.COMP-USA

Page 1 of 2
